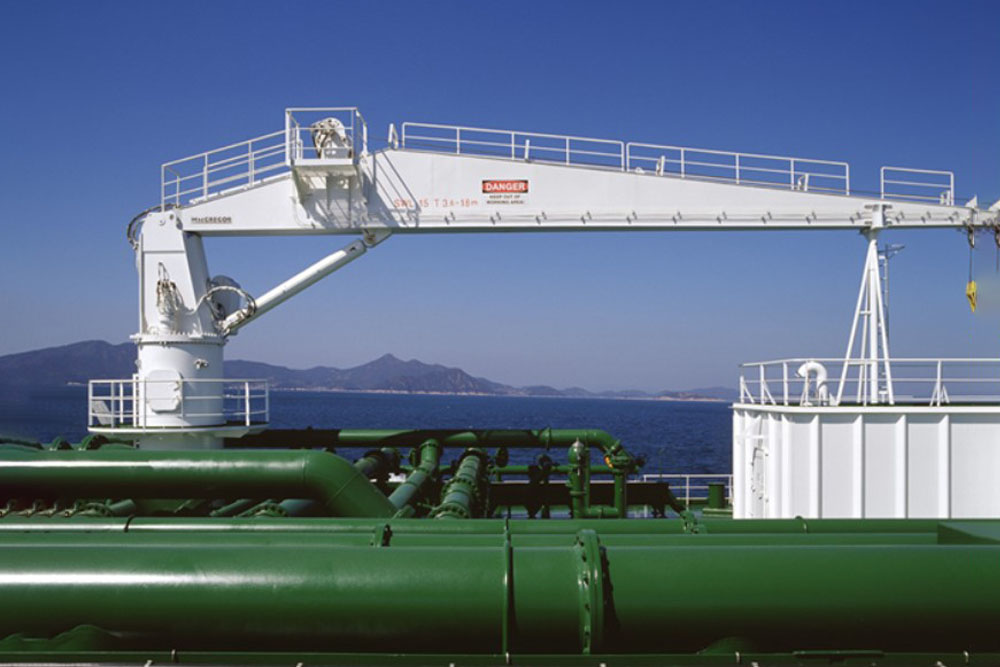

Provision Cranes – Self-Contained Electro-Hydraulic Cylinder Cranes

Key benefits

Whether you need to handle provisions, stores, spare parts, or service equipment, your crane must perform reliably in every condition and on every voyage without adding complexity to vessel operations.

• Self-contained design with no external power requirements, as every crane is a complete, independent unit that simplifies installation and reduces dependency on vessel systems.
• Smooth, fast, and stepless speed control delivering precise crane movements for safe handling of provisions, stores, and personnel in all conditions.
• All motions are available simultaneously at full speed and load, so you can hoist, luff, and slew at the same time without compromising lifting capacity or control.
• Robust and solid design that reduces unplanned downtime with components chosen for durability in the most hostile marine environments, keeping breakdowns to a minimum.
• Regenerative power recovery when lowering the load and jib reduces energy consumption and heat build-up through the closed-loop hydraulic system, which also means less cooling is needed.

Together, these qualities give you a reliable, efficient provision crane backed by a global service network of 60 service centres available around the clock.

Key features

The provision crane is built on a closed-loop hydraulic system and operated from a platform above the slewing ring, providing better visibility and safety during all lifting operations.

• Electro-hydraulic cylinder crane (type GP/HH) covering safe working loads from 3 to 25 tonnes, suitable for every provision and service handling requirement.
• Closed-loop hydraulic system delivering more accurate speed control, fewer losses, and regenerative power recovery compared to open-loop alternatives.
• Platform-mounted operation above the slewing ring gives the operator an elevated position with clear sightlines to the load, the deck, and the quayside.
• Built to fulfil OCIMF requirements, ensuring compliance with Oil Companies International Marine Forum standards for tanker and terminal operations.
• Two crane motions at full capacity simultaneously, with reduced speed available when operating two motions at once, providing flexibility for complex lifts.
• Wide range of optional equipment, including remote control (cable or wireless), oil cooler, Arctic configuration, cab, personnel handling capability, and floodlights.

These features make the provision crane a versatile, compliant, and easy-to-maintain lifting solution for any vessel type and any operating environment.
