MacGregor Davits

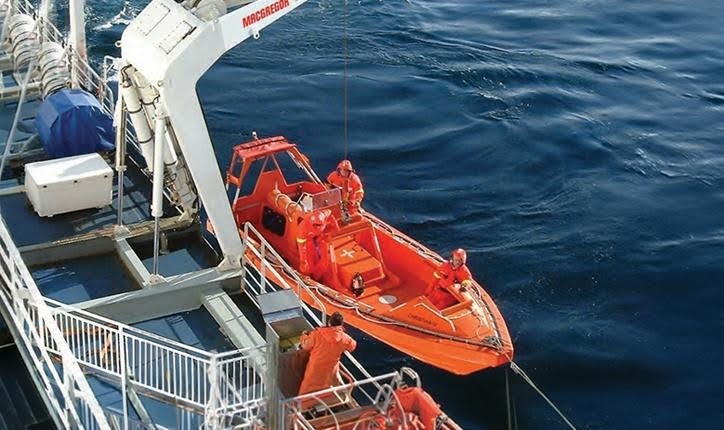

MacGregor davits are self-contained, hydraulically-operated units engineered for the safe launch and recovery of rescue craft, workboats, daughter craft and personnel transfer boats. Designed for long-service life in tough and corrosive marine and offshore environments, MacGregor davits are built on a simple philosophy: safety and functionality go hand-in-hand.

With more than 1,000 davits delivered worldwide — MacGregor is a long-term, proven supplier of reliable and robust davit systems. Our range covers two davit types, each suited to different vessel needs and load requirements.

Offshore vessels
product

Key benefits

  • Compact design: Compact design - HPU integrated with the davit structure
  • Proven reliability: over 1,000 davit deliveries worldwide
  • Safe, gentle handling: "dead-ship" launching, shock-absorbers and anti-pendulum docking heads protect crew and craft
  • Minor structural impact: compact designs reduce the need for extensive vessel reinforcement
  • Efficient space utilisation: optimised footprint without compromising performance
  • Easy installation and maintenance: supplied as complete, ready-to-install units
  • MacGregor 24/7 worldwide support: round-the-clock global service, wherever your vessel operates

Key features

A-Davits

The MacGregor A-type davit is a cost-effective solution for handling small and medium-sized fast rescue boats, man-overboard boats, with a safe working load of up to 6.2 tonnes. It's delivered as a self-contained, hydraulically-operated unit built for efficient, long-term operation in harsh offshore conditions.

Key features: MED certified, high-speed winch up to 48 m/min, constant tension system up to 120 m/min, integrated hydraulic power unit. Optional towing boom and shock-absorber available on request.

SOLAS/LSA type-approval, low-profile hydraulically-operated system, minor structural footprint, supplied as a complete, ready-to-install unit.

G-Davits

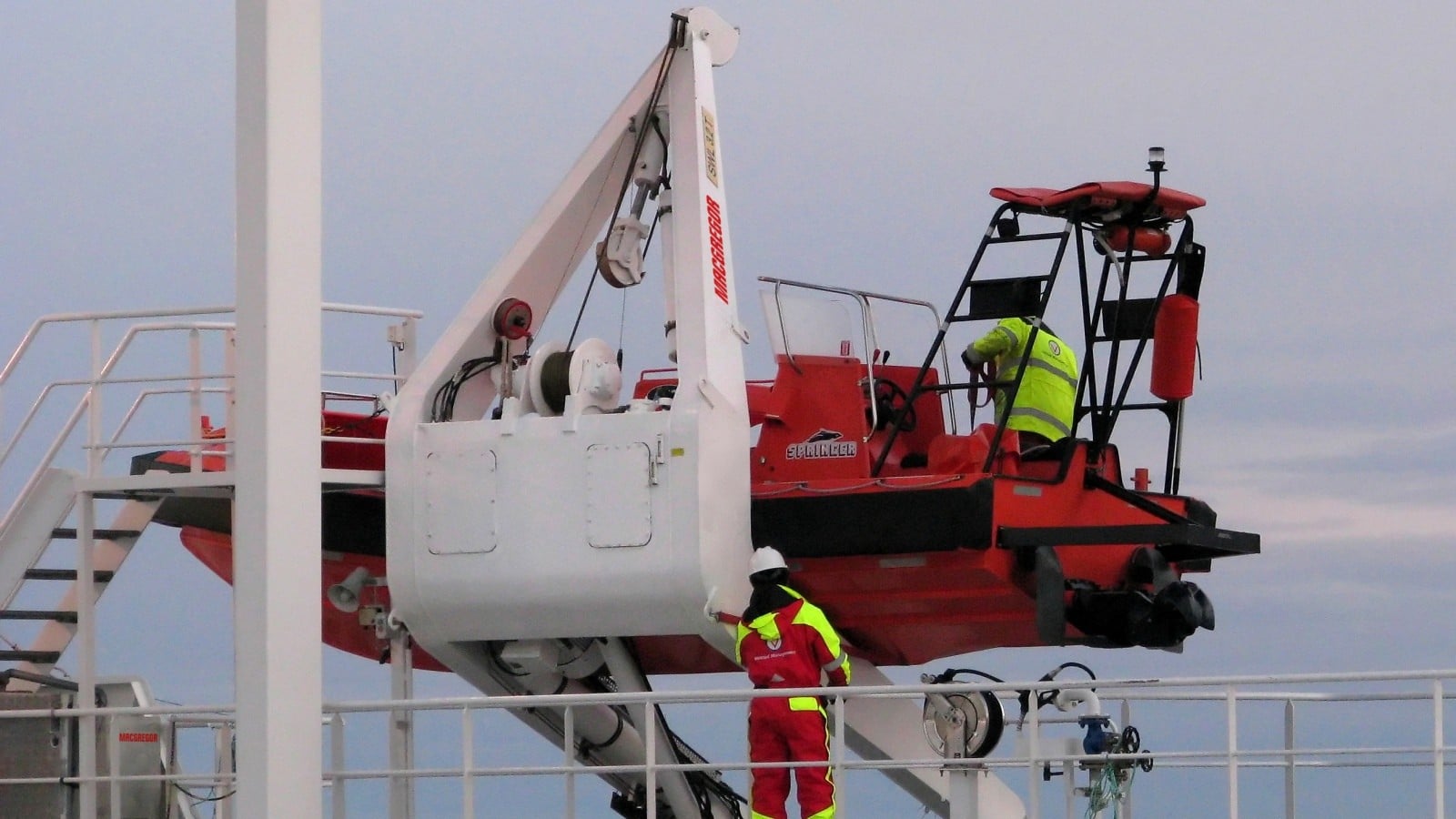

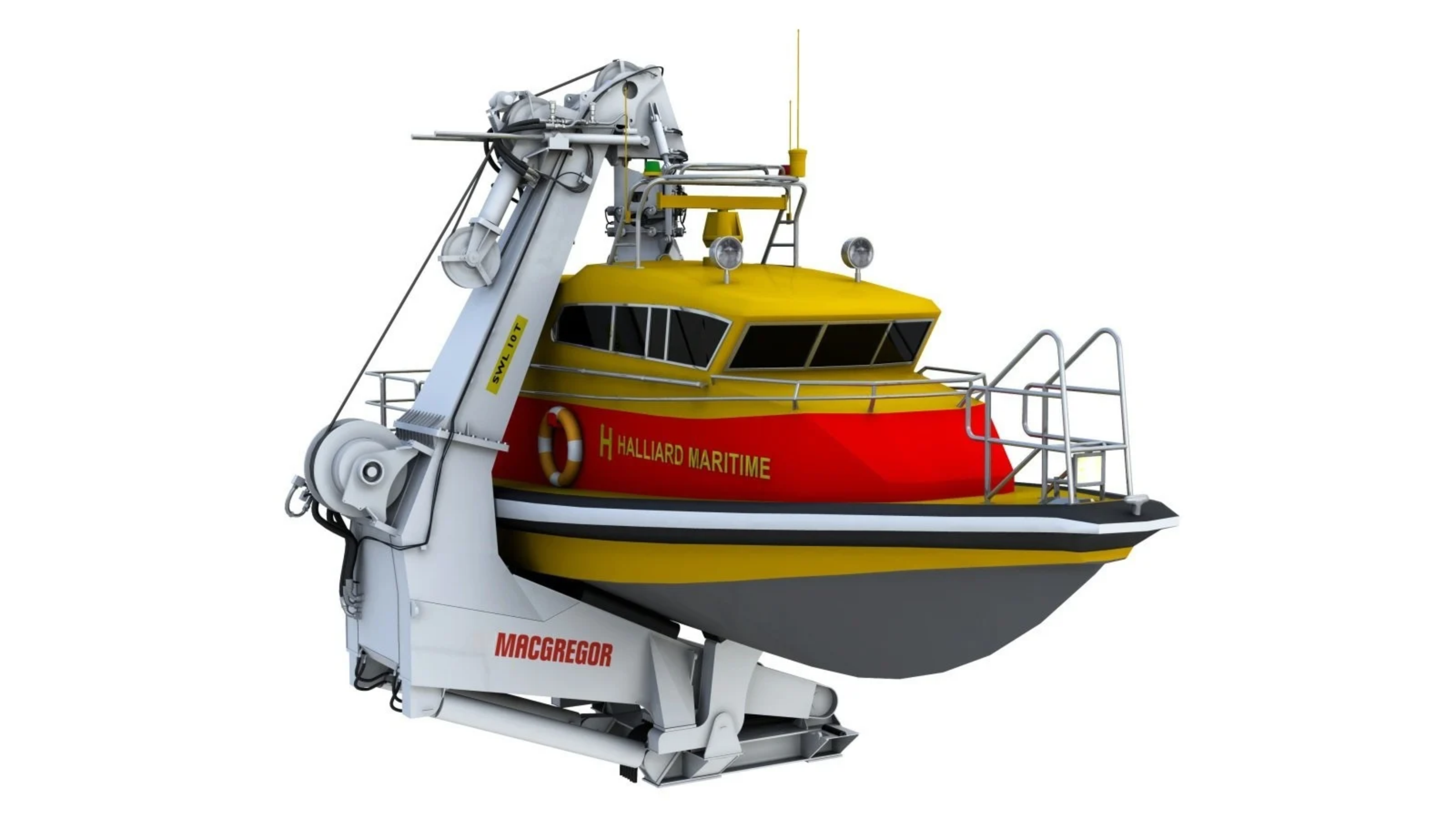

MacGregor G-type davits are specially designed for handling heavier workboats, daughter craft and personnel transfer boats, with a safe working load of up to 16 tonnes. Based on a hydraulically-operated frame with an automatic boat cradle, G-davits reflect over 200 deliveries' worth of refinement to meet demanding customer needs.

Key features: DNV type-approval, automatic boat cradle, high-speed winch up to 48 m/min, constant tension system up to 120 m/min, hydraulically-operated painter line boom, shock-absorber, anti-pendulum docking head, integrated hydraulic power unit.

MacGregor davits are self-contained, hydraulically-operated units engineered for the safe launch and recovery of rescue craft, workboats, daughter craft and personnel transfer boats. G-Type: Fast rescue craft davits gallery icon 1/2
  • Lifecycle Support

    From concept to lifecycle care, you are supported by MacGregor engineers, simulation tools and a global service network. We help you specify the right configuration, train your crew and plan operations.

  • Ship Types

    Offshore vessels: supporting rescue and personnel transfer operations in harsh offshore environments.

  • Solution Variants

    • A-Davit
    • G-Davit

  • Choosing the Right Davit Type

    A-Davit

    • Best for: Small and medium-sized fast rescue boats, MOB boats
    • Safe working load: Up to 6 tonnes
    • Winch speed: Up to 48 m/min (120 m/min constant tension)
    • Type approval: MED (SOLAS/LSA)
    • Positioning: Cost-effective standard solution

    G-Davit

    • Best for: Heavier workboats, daughter craft, personnel transfer boats
    • Safe working load: Up to 16 tonnes
    • Winch speed: Up to 48 m/min (120 m/min constant tension)
    • Type approval: DNV
    • Positioning: Heavy-duty, safety-led design
