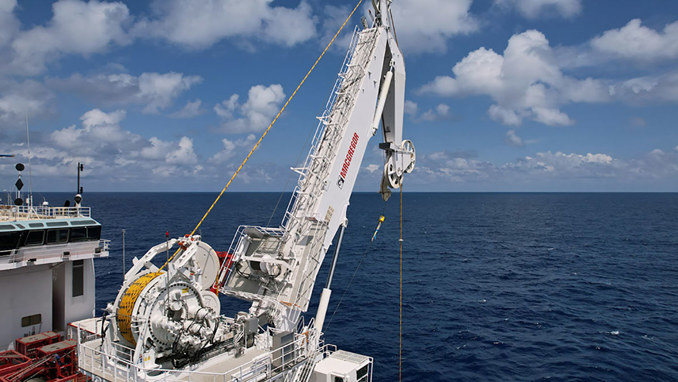

MacGregor’s dedicated fibre-rope offshore crane, FibreTrac, allows operators to use the full lifting capacity of the crane, at practically any depth, so a smaller crane and vessel can be used for more assignments, and owners are able to bid on a wider range of contracts.
This is made possible because of neutrally-buoyant, high-performance fibre rope. Fibre-rope weighs virtually nothing in water, so regardless of the length of rope used, it does not add anything to the load experienced by the crane. This is in complete contrast to steel wire cranes, which have to bear the load as well as the ever-increasing weight of wire paid out.
Gentle rope handling and a controlled environment safeguard the integrity of the fibre rope, guaranteeing a long lifetime.

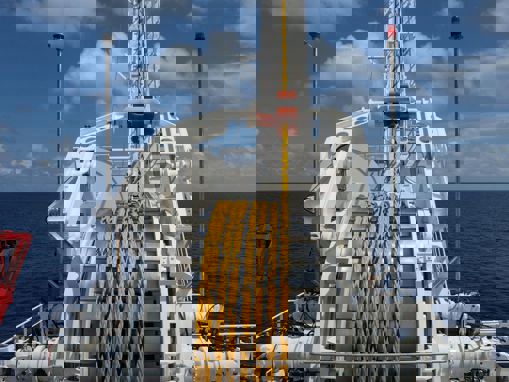

MacGregor fibre-rope cranes use a novel capstan, developed by Parkburn, as a traction winch. It consists of two interlocking drums slightly angled and offset in relation to each other. The drum geometry creates a natural and stable helix without generating any fleeting forces, so the rope does not twist on the drum as it is gently de-tensioned. The winch system can be delivered with digitally-controlled electric or hydraulic-drive units. Features include integral active-heave compensation and power regeneration capabilities.
The open design of the winch also assists with rope cooling, further assisting in eliminating the heating and degradation problems associated with on-load fibre ropes stored on winch drums. Importantly, it can accommodate non-uniformities resulting from splices in the rope.
MacGregor has also developed an exciting modular fibre-rope retrofit solution, which is based on the same technology. This allows customers to convert their existing wire-rope cranes to fibre-rope versions, unlocking their full potential.
Fibre rope advantages
- Load capacity not limited by depth
- Low number of high-tension bends
- Large capstan surface area ensures gentle rope handling
- Capstan design minimises heat build-up and fatigue in the rope
- Design allows for twin rope and on-board splicing
- Gentle rope spooling with regulated low tension on storage drum
- Integrated rope management system with 3D monitoring
- Proven MacGregor and Parkburn technologies
- Retrofit option available for existing cranes or foundations
- Highly-efficient electric or hydraulic winch drives
- Lifting capacity up to 200t* single line/270t* double fall
- AHC direct on winch
- In-house developed control system
- Main winch can be mounted on the crane or below deck
- Auxiliary winches with up to 25t SWL and 4,000m wire capacity
- Fully-equipped, spacious, air-conditioned, ergonomically-designed operator cabin
- Tugger winches
- Double compensated ship-to-ship transfer system
- Constant tensioning/auto-tensioning system
- Certified for personnel lift
- Dynamic load calculator with planning tool integrated into the crane’s control system
- C-HOW simulation platform
- MacGregor OnWatch Scout, satellite-based online support system with remote diagnostics
- Other special features available on request
